Works with pin vises! High-precision chisel blade
Small and precise flat blade chisel for use with pin vices

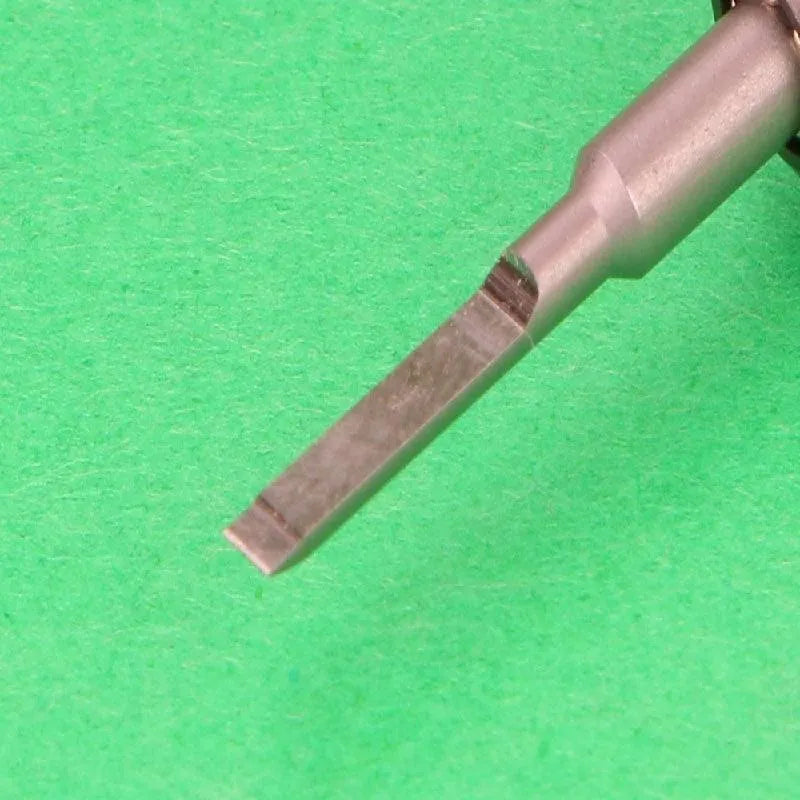

Its entire shaft is cylindrical, with a flat-blade edge.
Both sides of the blade are usable as a flat blade, but the tilt angle for easy carving will differ depending on which side is up.

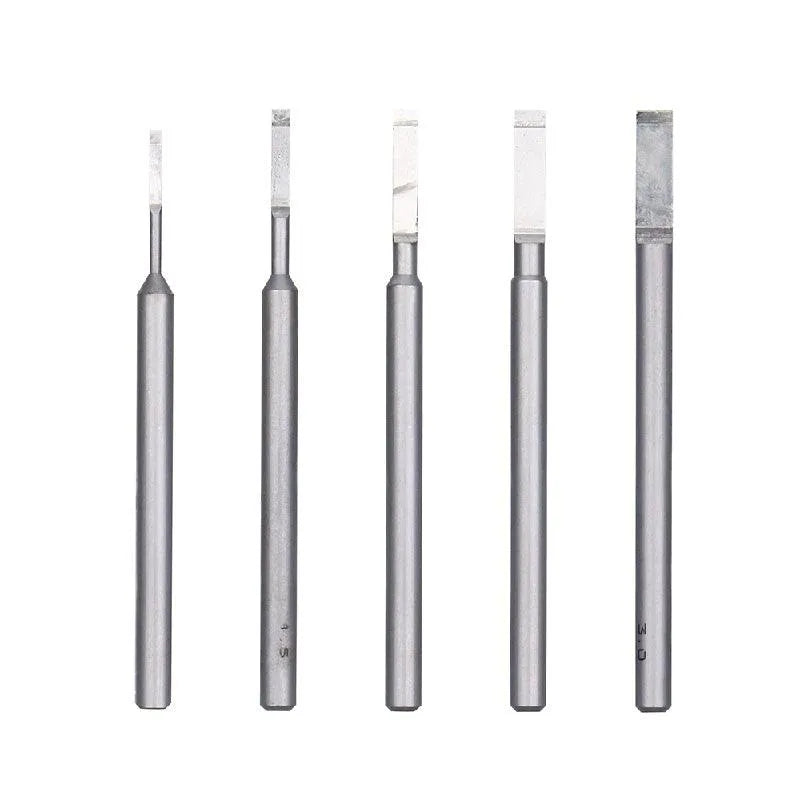

A 5-piece set sizes from 1 mm to 3 mm.
A unified 3 mm shaft enables easy replacement without changing the collet chuck of the pin vise body.
* Please take extra caution when handling the blades, especially when opening the storage case or during use.
Standardized shaft size of 3 mm. No need to change collet chucks of pin vises when replacing blades.
Blade size 1 mm, 1.5 mm, 2 mm, 2.5 mm, 3 mm
Improves modeling quality and work efficiency by using different blade widths.
Capable of sculpting erasers, wood, plastic, putty, resin, and of course, stones for seal engraving.
Portable storage case included.

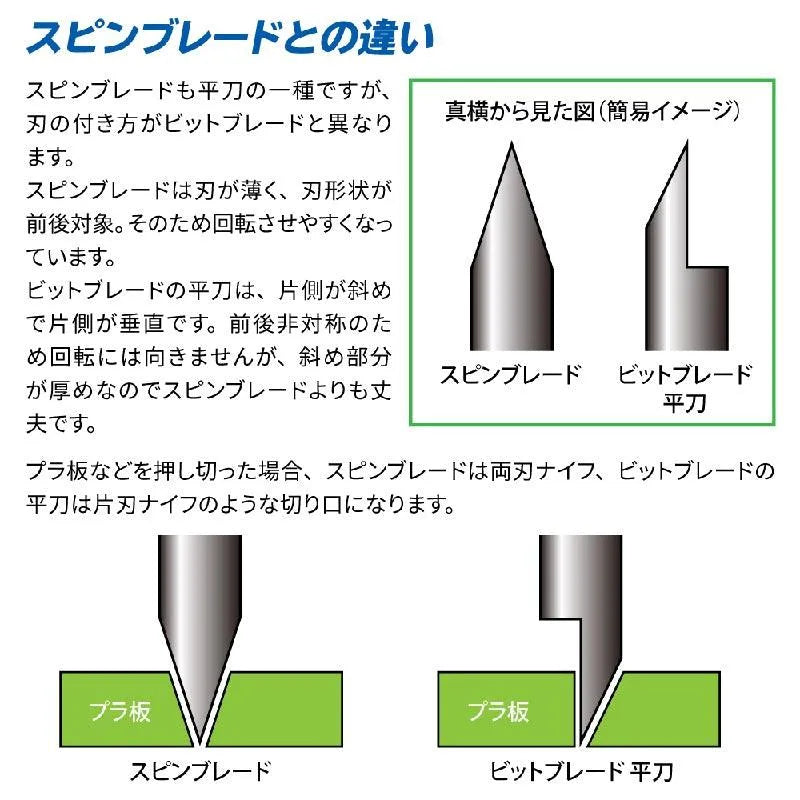

Difference from Spin Blade
[Spin Blade] is also a flat blade but differs from [Bit Blade] in the blade shape. [Spin Blade] is thin and symmetrical, enabling ease of drilling.
[Flat Bit Blade] is a blade with an oblique side and a vertical side on the other.
Since [Flat Bit Blade] is not symmetrical, it is not the best for drilling, but the thicker oblique part is more durable than [Spin Blade].

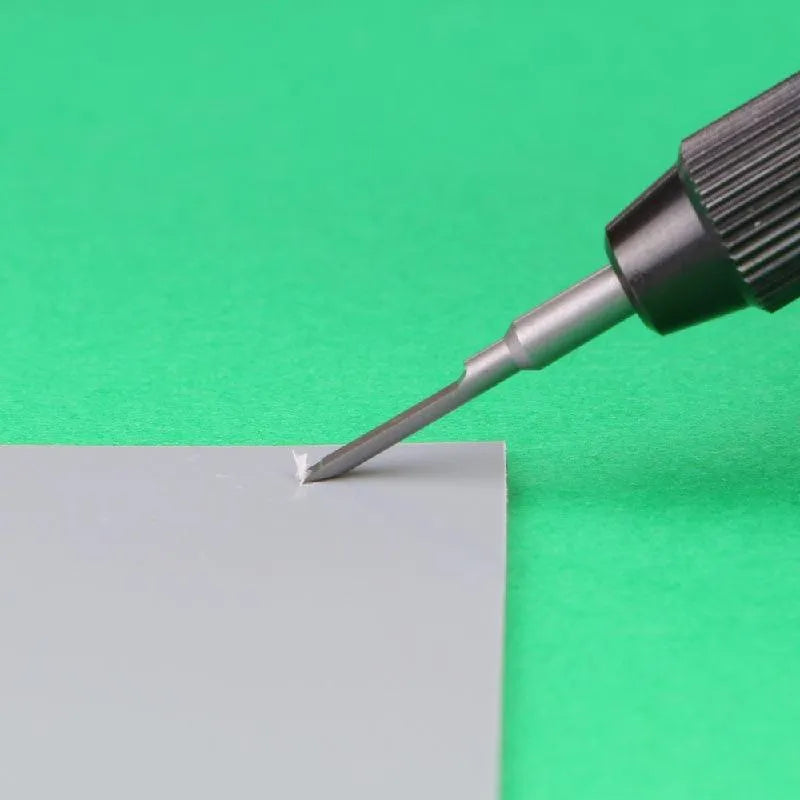

In the case of push-cutting plastic boards, the cut with [Spin Blade] is like a double-edged knife, and that with [Flat Bit Blade] is like a single-edged knife.

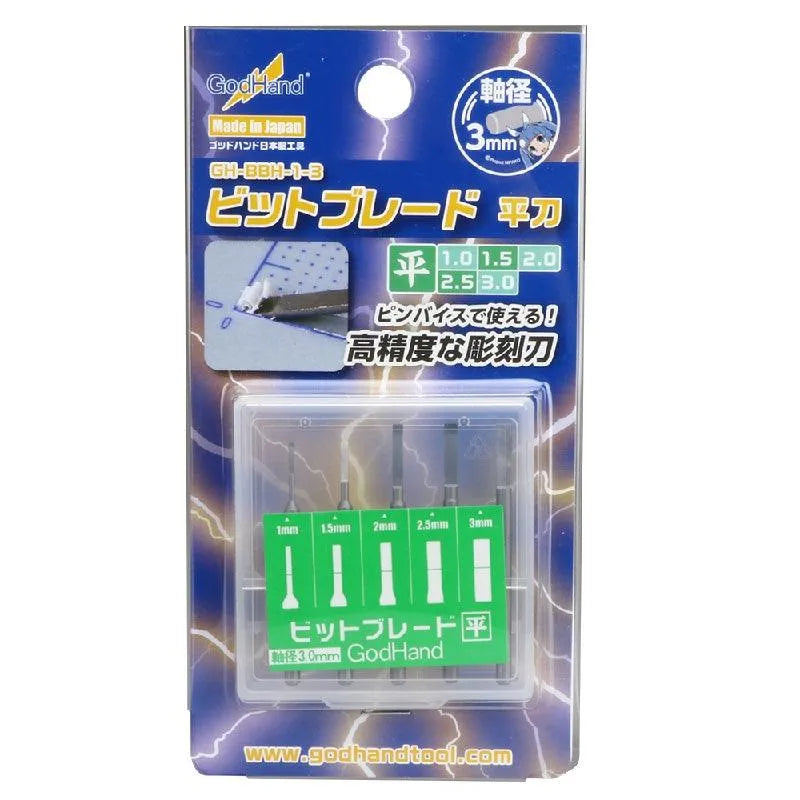

Bit Blade 5pcs Set [Flat Blade]
Product Code：GH-BBH-1-3
Quality Indication
Material: Special cutlery steel (with case)
Hole diameter: 1.0 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm
Case: PP
Shaft thickness: 3 mm
Made in Japan
⚠NOTE
Please fix the pin vise firmly in place before use.
Please be sure no one is around and wear protective glasses.
Cutting materials or broken blades in the eyes may cause blindness.
Blades made of hard metal, however, may damage or injure unexpectedly if excessive force is applied or improperly used.
After use, wipe with a dry cloth, lubricate with oil, and place in the case.
Please be careful to avoid injury
Please do not apply a load exceeding the capacity.
